Process Credit Card transaction in Receive Payment form

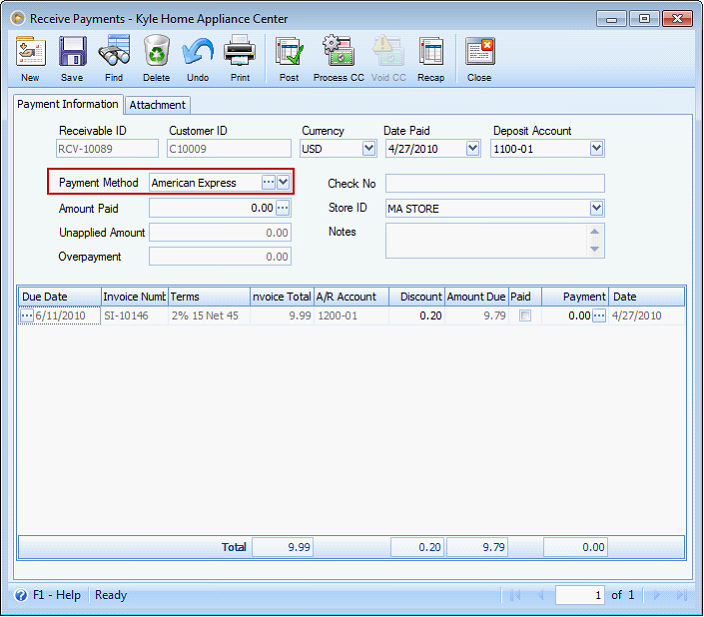

1. Payment Method selected is a credit card type.  Here, you can see that as you select a credit card type, the Process CC button is enabled.

cc_recpayment1



cc_recpayment2



2.Enter the Amount of the payment received, click Process CC button.

cc_recpayment3



And this message will be shown.  Click Yes.

cc_recpayment4



The TranSentry form will be opened. You can swipe the card or enter the following card details then process.



If you choose to swipe the card, this automatically extracts the information from the card and things happen behind the scene. Hidden processed may include extracting expiration date, card security code and expiration date.

cc_recpayment5



While if you choose to enter the Card Number, other Card Detail fields will be shown and must be filled in, i.e., expiration date, card security code, and expiration date. These fields appear the moment you enter anything in the Swipe or Enter Card Number field either by using keyboard or clicking the number buttons.

cc_recpayment6



In this example, let’s say we choose to swipe the card and click Process button.

cc_recpayment7



This confirmation message will be shown.  Click OK.

cc_recpayment8



3.You can then Post the Receive Payment.

cc_recpayment9



Say you decided to Void this receive payment, you can just click Unpost button and the Void CC button will be enabled.  Click that button and the confirmation message that tells you that the voiding has been completed will be shown.

cc_recpayment10
