Installing VisionCore on your Workstations

1.Run VisionCore.exe to open the InstallAware Wizard.

install_client1

Before you can install VisionCore, you need to have Microsoft .NET Framework 3.5 SP1 or greater installed on your machine. Once the InstallAware detects that you don’t have this program, you will be brought to the Required Programs screen which provides a link where you can download it. Once you have installed Microsoft .NET Framework 3.5 SP1 or greater, click Retry to continue.

If you already have Microsoft .NET Framework 3.5 or greater installed prior to running the VisionCore.exe, the installer would skip this screen and would go directly to the Welcome screen.

2.When the verification of contents of the setup package is done, you will be brought to the Welcome screen. Click Next to continue on the License Agreement.

install_client2

3.In the License Agreement screen, read the license agreement and check the I accept the terms of the license agreement checkbox then click Next to continue.

install_client3

4.By the default, the destination path is C;\Comtech Solutions\VisionCore. You may also change this by clicking the Change button then, select another path to install VisionCore to. To install the application for all users, click the radio button Anyone who uses this computer (all users) or if you want to install for current user only, choose Only for me (current user) radio button. Click Next to continue.

install_client4

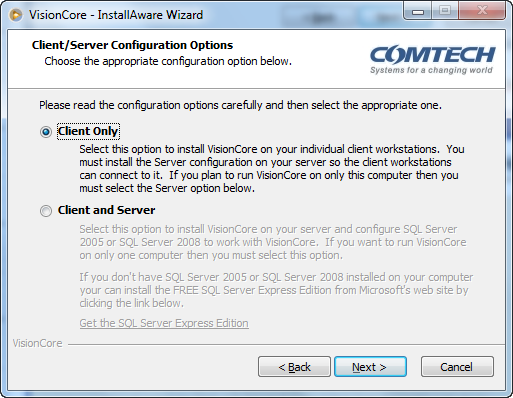

5.In the Client/Server Configuration Options screen, select Client to install VisionCore on your individual client workstations. Click Next to continue.

install_client5

6.You are now ready to install VisionCore. Select the option Add a VisionCore shortcut to your desktop to create a shortcut on your desktop when the installation is done. Click Install to continue.

install_client6

Note that by default there will also be a VisionCore Menu located in the Start Menu > All Program > Comtech Solutions.

7.In the Installing VisionCore screen, VisionCore features are now being configured on your machine.

install_client7

8.The Important Information screen displays some notes when logging in to VisionCore. Click Next to continue.

install_client8

Please take note of the User Name and Password. You will use this to log into the VisionCoreSampleCompany.

9.In the last screen of the installation, select the option Run VisionCore Now to open the VisionCore log in form right after clicking Finish.

install_client9

Click Login to move you to the next topic.
